Product overview - Single Tyre swing out
When placing your order, please add a note to let us know your vehicle model & year.

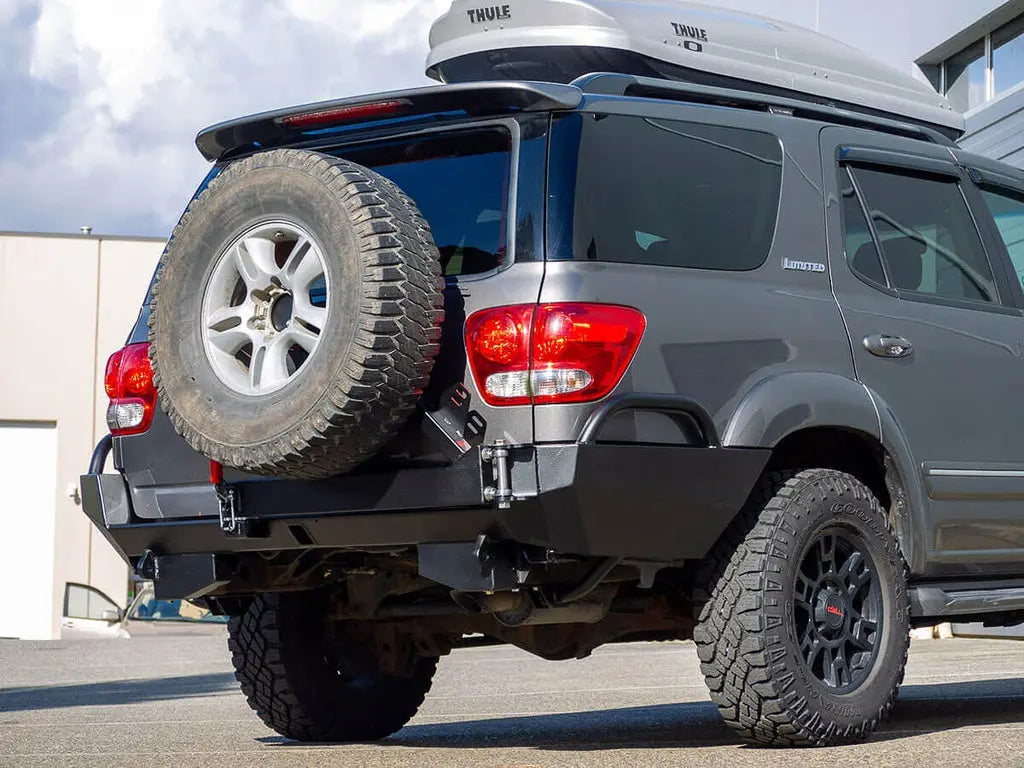

These DIY weld-together tyre swing out carrier kits come with everything you need to assemble and weld it on to your existing bumper or frame. When placing your order, please enter your vehicle year and model into the notes section and we will then customize the swing outs to suit your wheel lug pattern, vehicle width and bumper model. This swing out kit of course fits Coastal Offroad bumpers, but also will fit just about any tube or plate steel offroad rear bumper. We've also had many customers build an extension off of their vehicle's frame and then run these swing outs with a stock rear bumper for a lighter, more minimalist setup. We can also customize this kit to fit nearly any vehicle model - we've even made one for a Honda Element! The only requirement is a position to mount the swing out hinge bracket on either side of the tailgate of your vehicle. These swing out carriers come in pieces that are fully pre-cut, CNC-bent and pre drilled. All you need to do is weld the pieces together and install them on your vehicle!
The swing out tire carrier comes in either a single or dual sided configuration and is built to accept a tire up to 37" in diameter! Both carriers include mounting brackets for a hilift jack and other recovery items. The dual swing out includes the hilift mount as well as a lockable jerry can holder designed to fit two 20L NATO style jerry cans. We can also do all sorts of custom attachment options, some of which are shown in the product photos. We can also offer the swing outs as bare frames so you can build your own custom attachments to fit your own vision!
These carriers feature heavy duty chromoly heim joint hinges, 2000lb toggle latches, T-handle spring pins, and a replaceable UHMW catch pad that provides secure, rattle free operation. Every piece of hardware is sourced from either stainless steel or high quality plated steel for the best possible corrosion resistance, even in heavily salted winter environments. The heim joints in conjunction with the toggle latch provide tons of adjustability, allowing for easy assembly and guaranteed alignment of the carrier latch. This system provides a much more adjustable system than traditional bearing swing out hinges, which are fixed in position and prone to misalignment and sagging over time. We cannot tolerate saggy swing outs that have to be lifted into their closed position and neither should you! Our heim joint design provides a huge range of adjustability of the arm angle and height, guaranteeing alignment. To make assembly cleaner, faster and more precise, this kit uses laser-cut and CNC-formed plate and tubing pieces. The single swing out add-on weighs 34lbs and the dual swing out add-on with gas can holder weighs 77lbs.
