Product Overview - 3rd Gen Surf Rear Bar

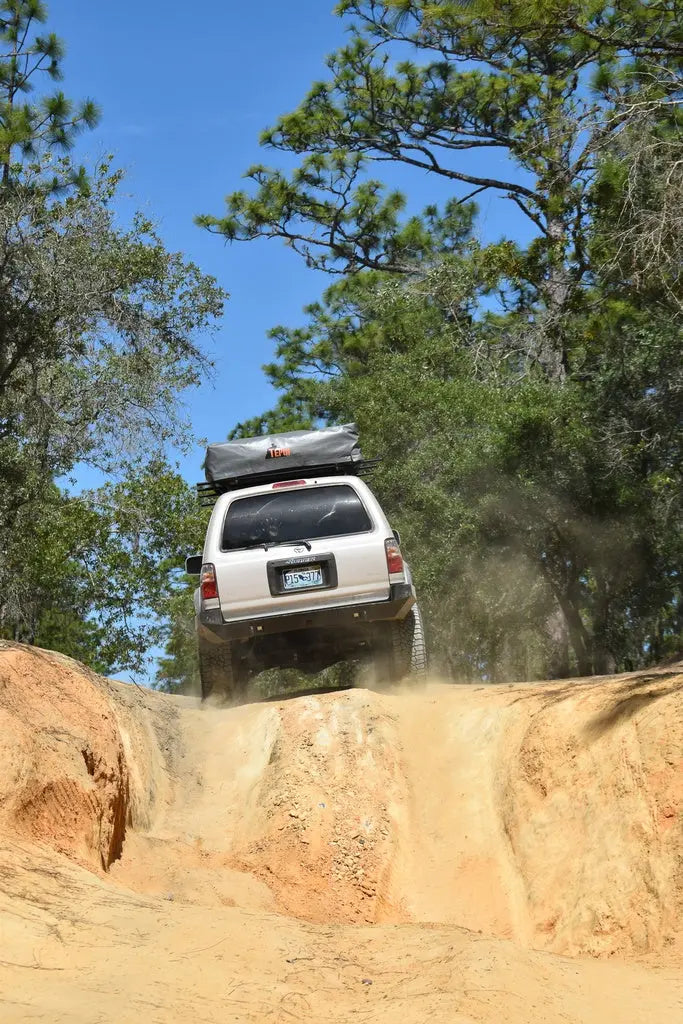

This is a high clearance DIY weld-together rear bar kit for the 3rd generation (1996-2002) Toyota 4Runner. It features a bolt-on design, recessed 2" receiver hitch, and one of the best departure angles on the market. In fact with the sloping rear profile, this bumper tucks in 5.5" tighter to the frame than some other competitors' plate bumpers. This bumper allows you to forget about departure angle and substantially improves the offroad capability of your 4Runner. It offers excellent protection from trail obstacles and distracted drivers alike and has been kept to a weight of 120lbs through careful design work.The profile of this bumper has been designed with maximum ground clearance and departure angles put first. The bumper sits as high and tight to the rear of the 3rd generation (1996-2002) Toyota 4Runner as possible, while the recessed hitch receiver and angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. These features make a very noticeable difference during deep ditch crossing and steep obstacle climbs where other aftermarket bumpers with bulky rear profiles and protruding hitch receivers will hang up and impede progress on the trail. Simply put, this bumper allows you to forget about departure angle and substantially improves the offroad capability of your 3rd gen 4Runner!Unlike many aftermarket bumpers that are more or less empty shells with minimal reinforcement, this bumper contains extensive internal ribbing and mounts directly to factory holes in bottom and sides of the 4Runner's frame for unmatched strength and stiffness. The side wings of this bumper provide un-interrupted plate protection that wraps underneath the vehicle and into the vehicle frame. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that many Toyota 4Runner owners want to run oversized tires, which often create interference and rubbing issues with the stock bumper. We have thought ahead and specifically designed these bumper side wings to clear 35" tires.The main section of this bumper is CNC-bent out of a single piece of  3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.We finished this bumper off with optional single and dual swing out carriers, a high clearance hitch receiver, LED pod lights (custom cut outs available by request), and heavy duty 9/16" recovery points that are placed directly in line with the Toyota 4Runner frame to eliminate any leveraging effects. These recovery points are formed out of laser cut steel plates that pass through the bumper shell and tie directly into the bumper's main mounting points on the 4Runner frame. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Toyota 4Runner's frame and provide reliable recoveries of heavily loaded vehicles in the worst of offroad situations. What could make this bumper even better? The low profile design has resulted in very reasonable weights of 120lbs for the steel bumper and 59lbs for the aluminum version. Considering that this bumper replaces your factory bumper, bedside corners, hitch receiver and associated components, the resulting weight increase to your Toyota 4Runner is surprisingly minimal. This reduces added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.The swing out tire carrier comes in either a single or dual sided configuration and is built to accept a tire up to 37" in diameter! Both carriers include mounting brackets for a hilift jack and other recovery items. The dual swing out includes the hilift mount as well as a lockable jerry can holder designed to fit two 20L NATO style jerry cans. These carriers feature heavy duty chromoly heim joint hinges, 2000lb toggle latches, T-handle spring pins, and a replaceable UHMW catch pad that provides secure, rattle free operation. The heim joints in conjunction with the toggle latch provide tons of adjustability, allowing for easy assembly and guaranteed alignment of the carrier latch. The single swing out add-on weighs 34lbs and the dual swing out add-on with gas can holder weighs 77lbs.
