Toyota 70 Series Front Bar - Coastal Offroad

Product overview - Toyota 70 series Front Bar

Please add a note to your order to inform if your vehicle is coil sprung or leaf sprung

This is a high clearance DIY weld-together winch front bar kit for the 70 Series Toyota Land Cruiser. It features a bolt-on design, protected winch mount, and one of the best approach angles of any bumper on the market. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Land Cruiser! It offers excellent protection from rocks, trees and animal strikes and has been kept to a weight of 66lbs through careful design work.

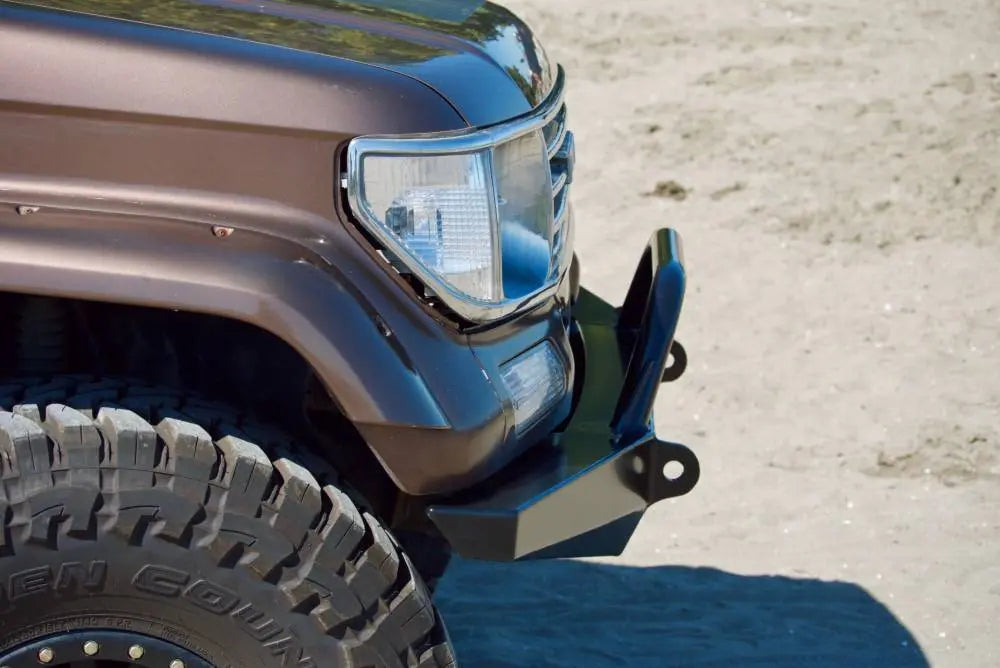

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the 70 Series Toyota Land Cruiser as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most Land Cruiser owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 35" tires.

We finished this bumper off with an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" recovery points that are placed directly in line with the Land Cruiser frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and tie directly into the Land Cruiser frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Land Cruiser frame and provide reliable recoveries of heavily loaded vehicles in the worst of offroad situations. What could make this bumper even better? The low profile design has resulted in very reasonable weights of 66lbs for the steel bumper and 32lbs for the aluminum version. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your Land Cruiser is surprisingly minimal. This reduces added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

NOTE: Due to the number of variations and sub models of the 70-Series Land Cruiser, please email us a picture and the exact model of your Cruiser when placing your order so we can confirm fitment
